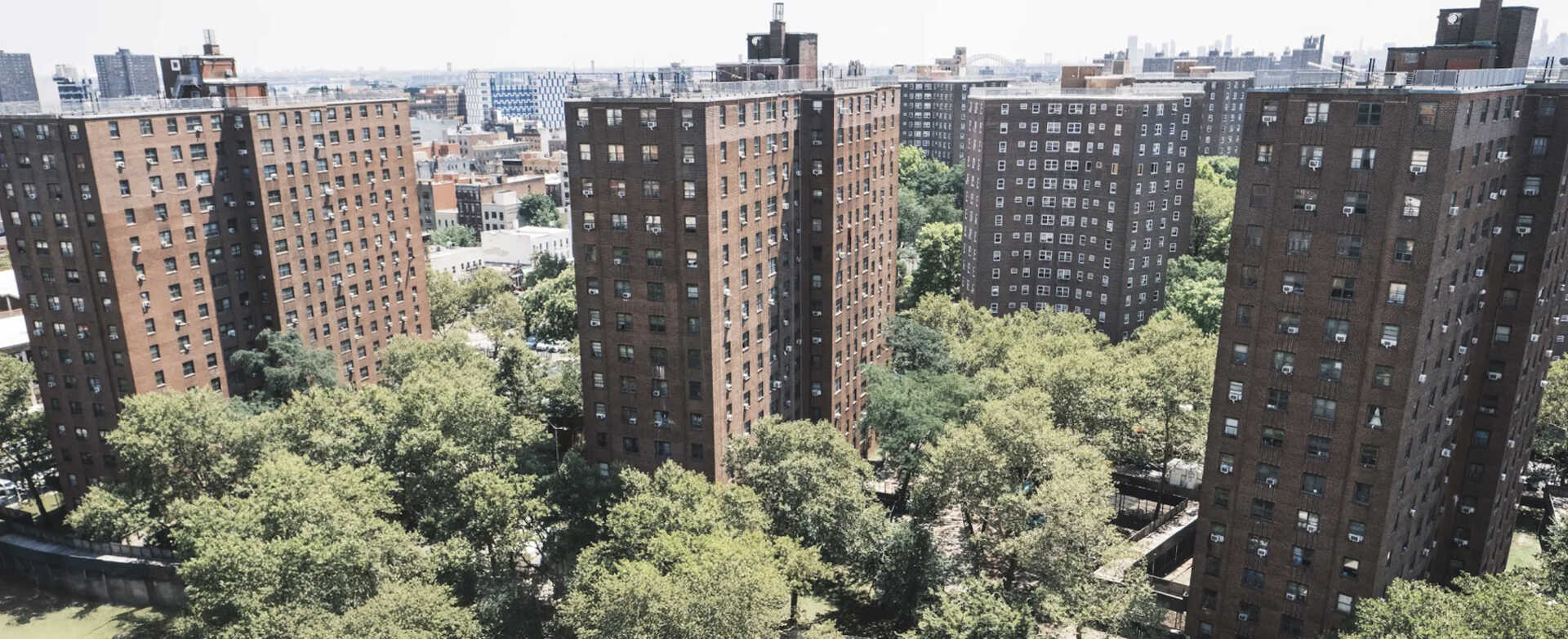

Jackson Houses & Eastchester Gardens
Bronx, New York
-
US Northeastern Climate Cold Winters
-
Ground Source Heat Pump via Vertical Loop System
-
1,745 Units

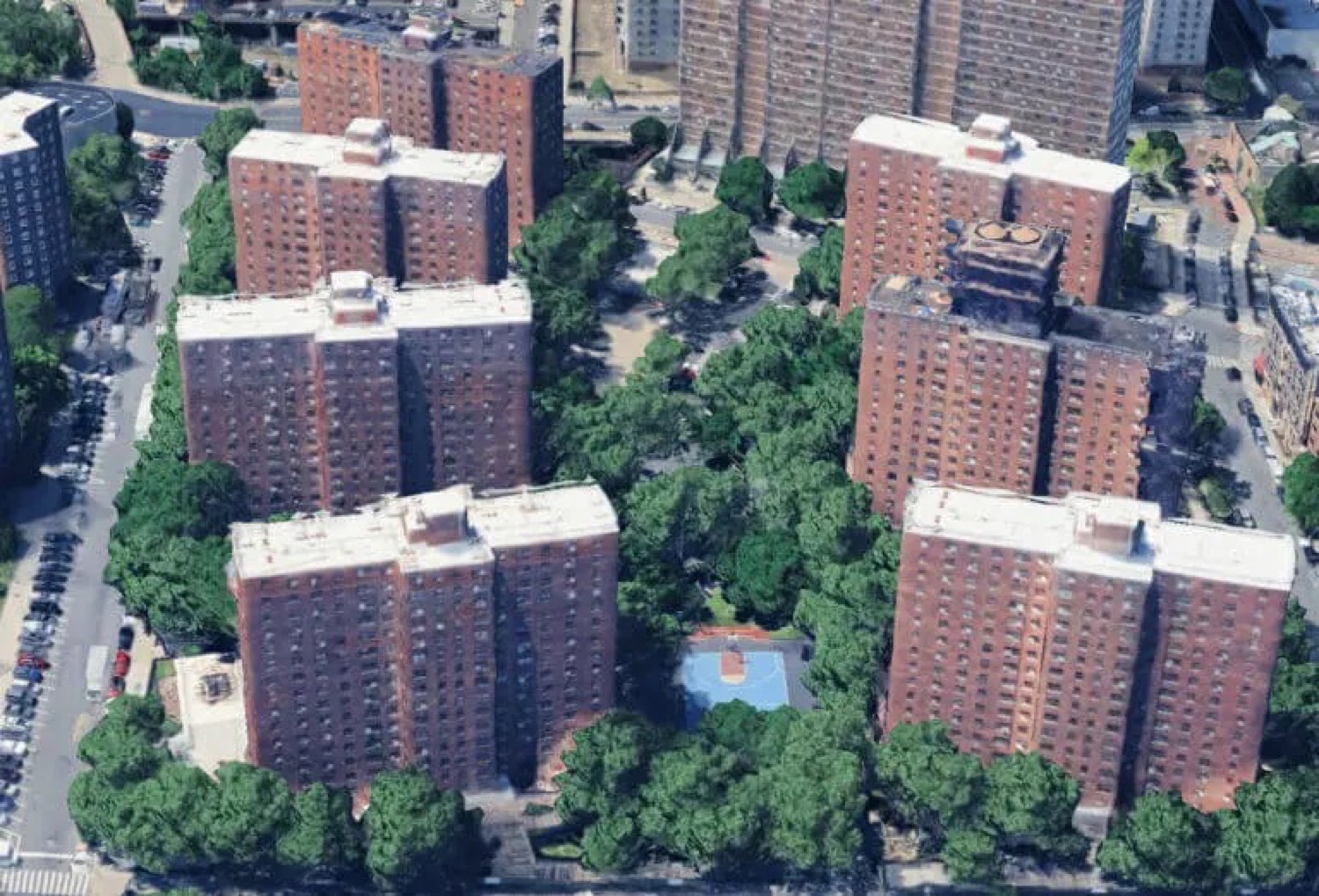

5 Multifamily Buildings
Supporting Sustainable
NYCHA Communities
For the Jackson Houses & Eastchester Gardens' redevelopment of their hot water system, Buffalo Geothermal partnered with the project team to deliver a high-performance geothermal solution tailored to a large, urban multifamily campus. Given the scale of the development, site conditions, and long-term operational goals, the system was designed to provide efficient heating and domestic hot water while minimizing energy use and emissions.
Geothermal
System

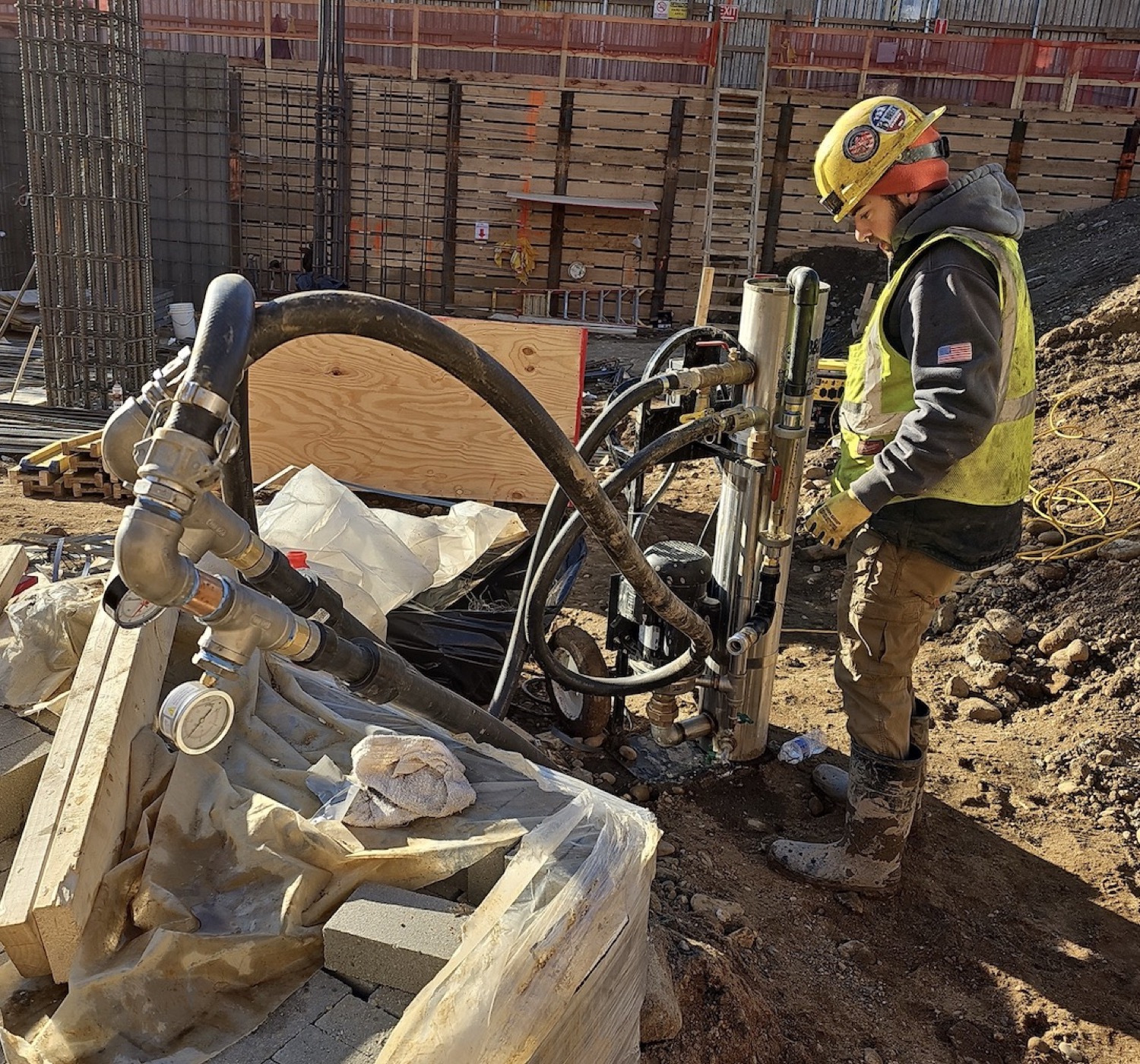

The geothermal system utilizes a vertical closed-loop field designed to provide domestic hot water for high-density, multifamily residential buildings. The system replaces traditional fossil-fuel based water heating with geothermal heat pumps connected to boreholes drilled 500 fett into bedrock, using the ground as a stable thermal source.

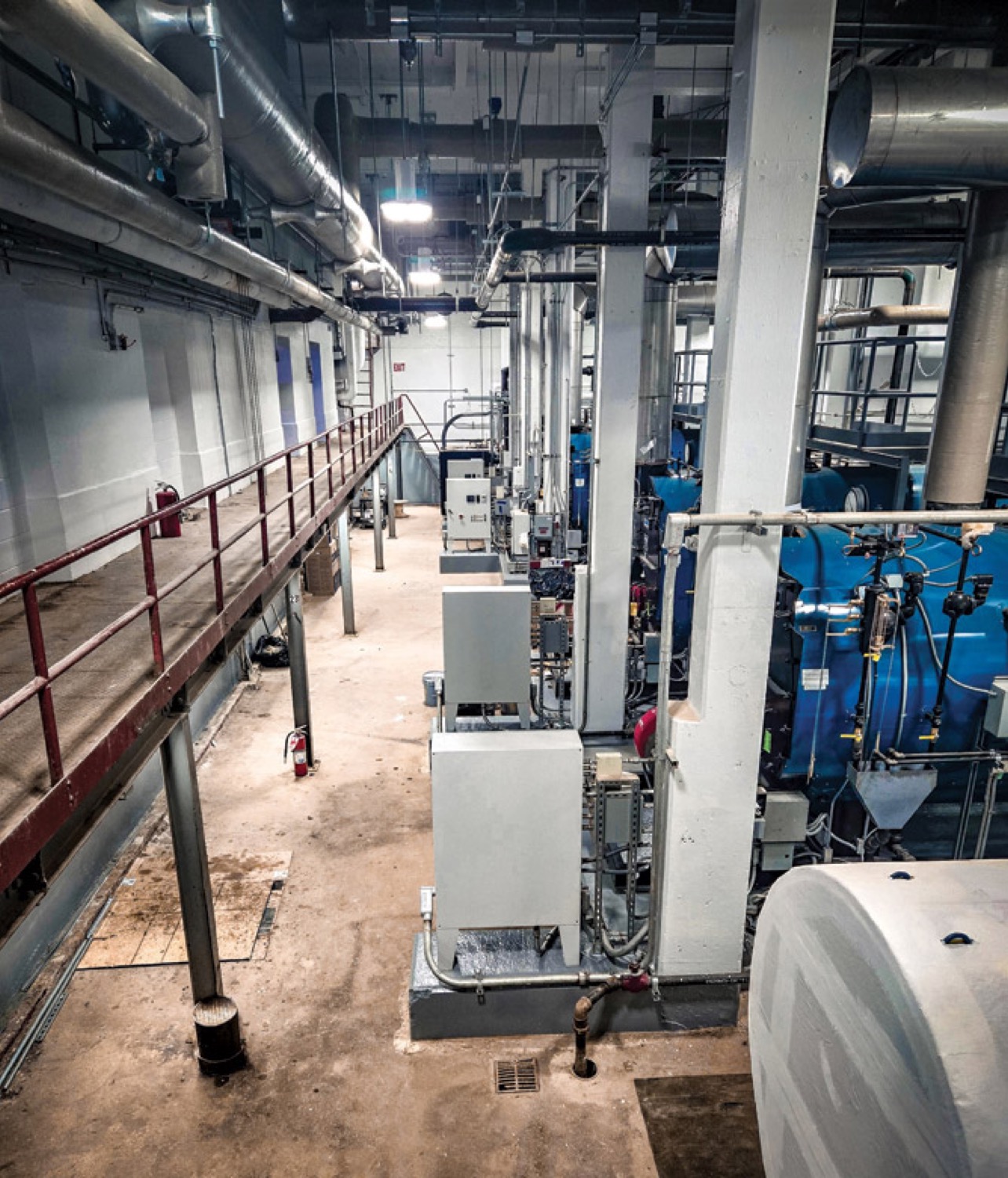

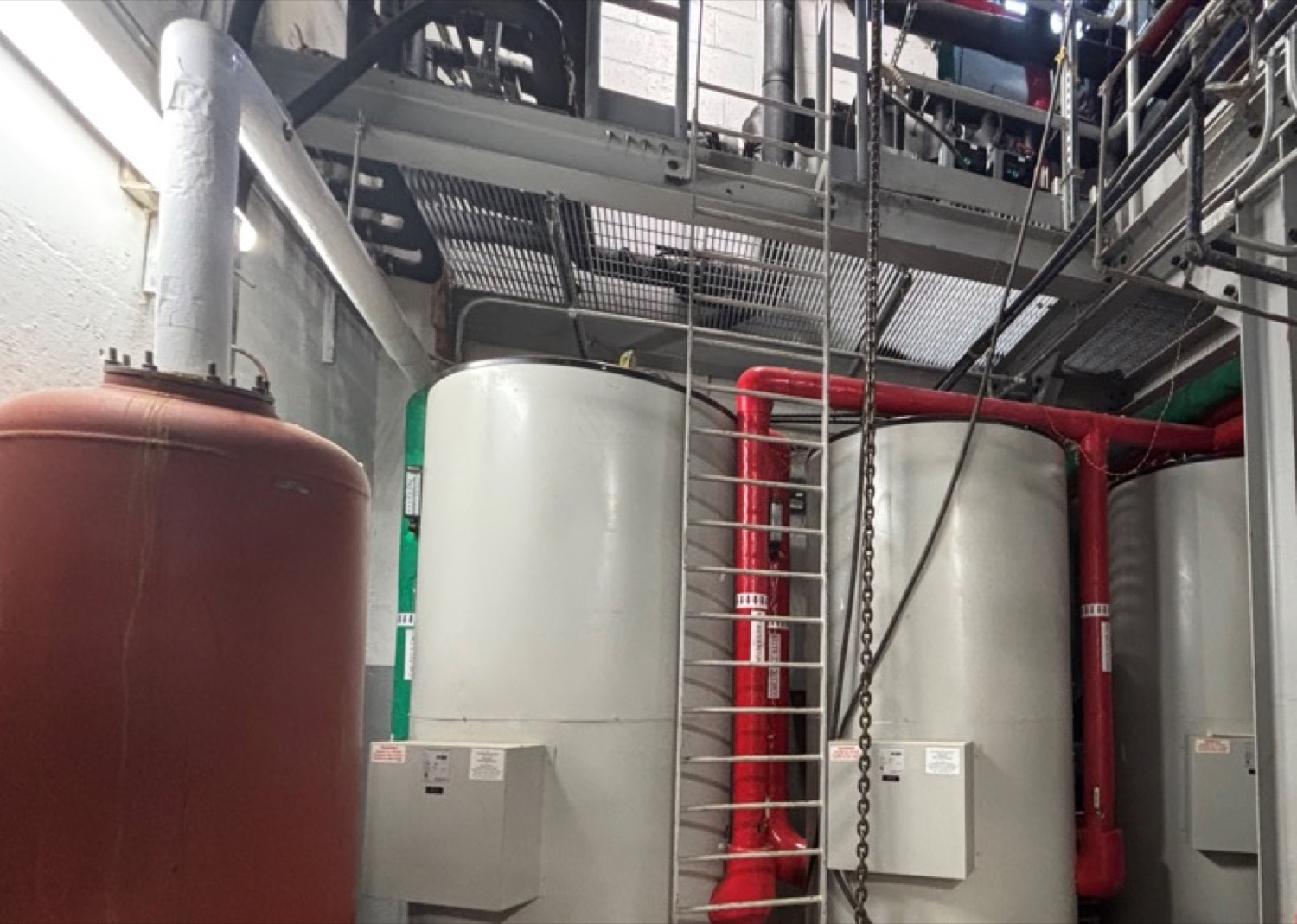

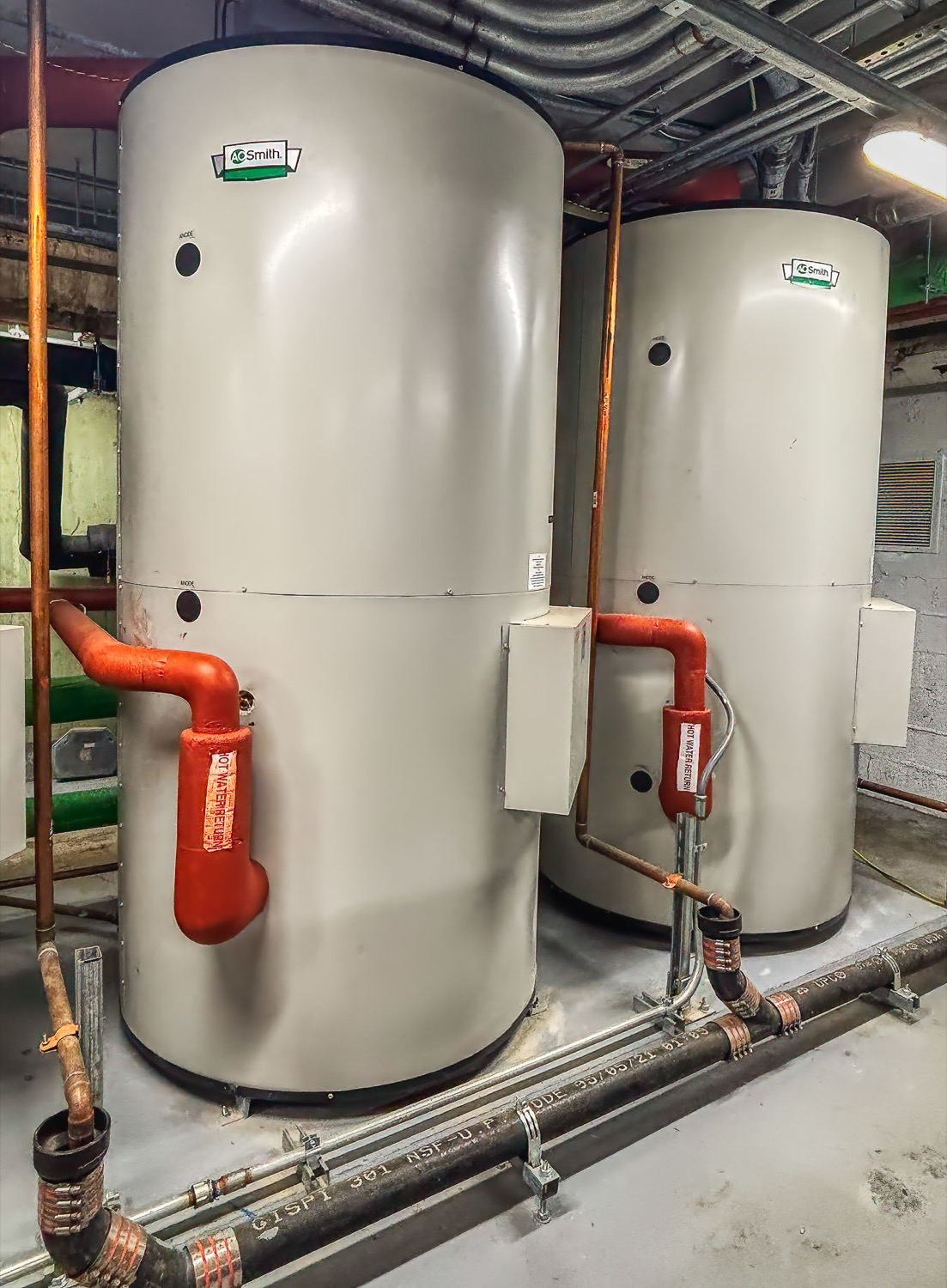

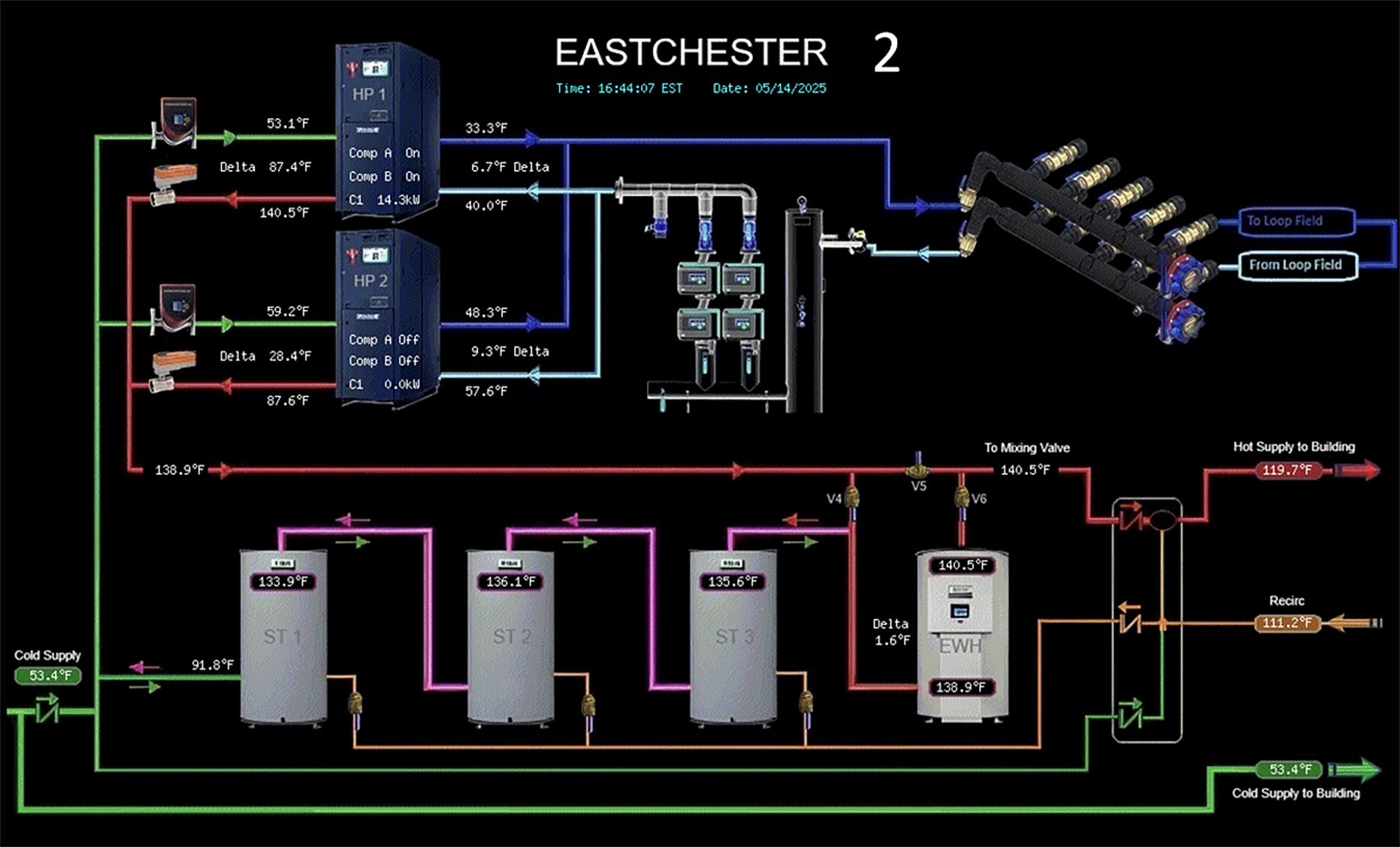

A custom high-capacity heat pump configuration serves each building, delivering consistent hot water temperatures above 140°F while maintaining high efficiency levels. The system incorporates dual compressors, liquid injection technology, and double-walled heat exchangers to meet health code requirements and ensure reliable performance. High-efficiency storage tanks and precision mixing valves allow for rapid hot water delivery while minimizing water and energy waste. The geothermal system supports year-round operation, reduces on-site emissions, and provides long-term energy cost stability for residents.

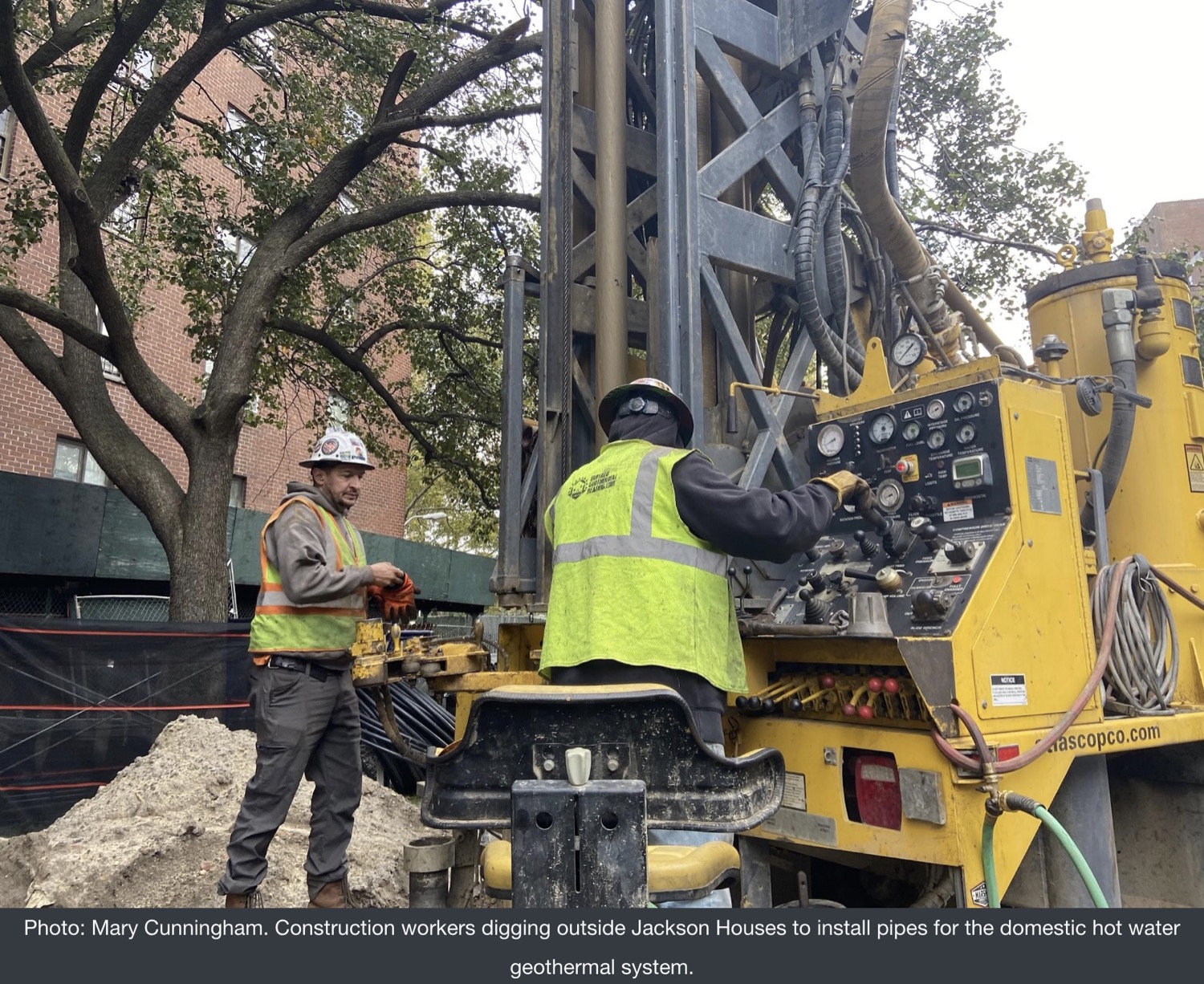

Vertical loop field via 15 boreholes, 500 ft. deep

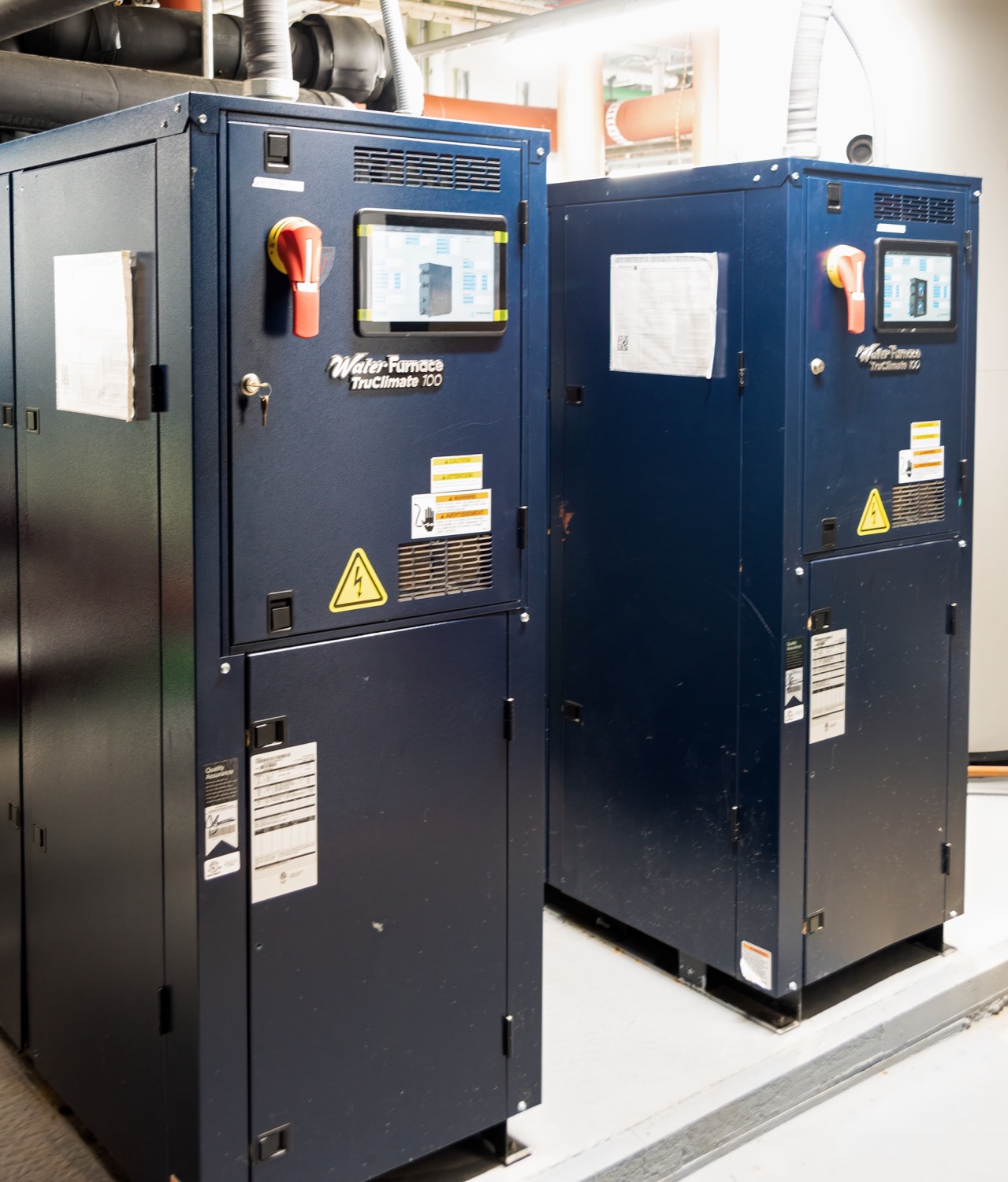

High-capacity heat pump configuration
Dual compressors, liquid injection technology, and double-walled heat exchangers
Featuring:
- 50 Single-Stage Units
- 2 Dual-Stage Units
- 6 Variable-Stage Units
- 2 High-Temperature Water-to-Water Heat Pumps
